Your safe uses a 3.6V 18650 rechargeable lithium-ion with a flat top. A minimum 2000 mAh capacity is required, however 2200 mAh or higher can be used to increase operation time.

1) To get started, insert one of your backup keys into the keyhole located under the keyhole cover on the front door (see Figure A). Push key in and rotate the key clockwise to open the safe.

2) Locate the battery compartment inside the safe on the backside of the front door (see Figure B).

3) Remove the battery cover by pressing down on the tab near the top of the cover.

4) Insert the 18650 rechargeable lithium-ion battery (included in accessory box) into the battery compartment. Note that your Vaultek® safe automatically detects the polarity of the battery and can be installed in either direction.

TIP: For easy removal make sure to place the pull string over the battery before replacing the cover.

5) When the battery is inserted you will hear a short welcome tone and the keypad will light up.

6) Once you hear the tone replace the battery cover. You are now ready to program your safe.

TIP: Your code can be a minimum of 4 and a maximum of 8 digits. We recommend a code 6 to 8 digits in length using at least one of each key to make it more difficult for someone to guess your code. For your security, the safe will time out and sleep for 4 minutes if 6 incorrect entries are made.

TIP: Two keys cannot be pressed simultaneously.

TIP: Programming a new code will overwrite your previous code.

1) Open the safe. Note, keys are included. With the safe open, press and hold the ‘1’ key then the “PROGRAM” button together (3 seconds)(Figure D) until the LCD screen prompts you to enter your new code.

2) Enter your NEW master code.

3) Press and hold the ‘1’ key then the “PROGRAM” button together a second time (3 seconds) until the LCD screen prompts you
to re-enter your new code.

4) Enter your NEW master code a second time.

5) Press and hold the ‘1’ key then the “PROGRAM” button together a third time (3 seconds) until the LCD screen confirms the code change is complete.

If you make a mistake and the new code will not work, simply start over with step 1.

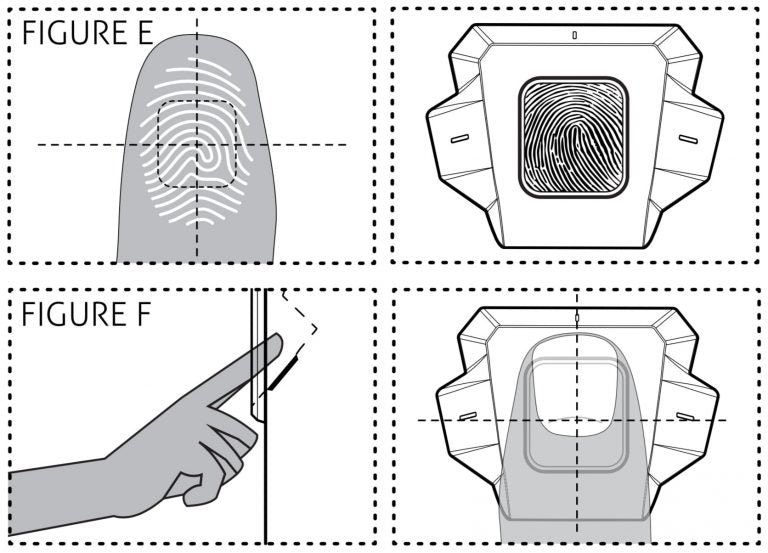

Your safe has the ability to store up to 20 unique authorized users. A user consists of 5 scans of the same finger during programming. Follow the “Program Fingerprints” section below to get started.

TIP! For your WiFi setup guide visit https://vaulteksafe.com/support/rs-series-wifi-setup-guide/

Network Requirement: Be sure to use 2.4GHz network when getting your safe online.

The first step is getting your safe online and connected to your Wi-Fi network. You can do this with either the Vaultek Wi-Fi app using your phone (Setup A), or with your router’s WPS button (Setup B). You can view your preferred setup video below.

Your safe supports Nano Key the fastest access available. Its small footprint and mountable base make it easy to hide and conceal anywhere, making it suitable for use as a panic button. Take caution when using the included Nano Key and be responsible. Security can be compromised in the event it is lost or stolen. Only pair Nano Key after thoroughly understanding the inherent risks.

IMPORTANT: Nano Key is compatible with VT Series (VT/VTi), MX Series (MX/MXi/NMX/NMXi), Slider Series (SL20/SL20i/NSL20/NSL20i) and RS Series (RS200i/RS500i).

NEW! Sold separately is the new Nano Key Biometric which features a fingerprint scanner for secure and discreet access to your safe.

Vaultek strongly encourages you to register your safe as soon as receive it. Registration provides many benefits including technical support and ordering replacement keys should you replace them. Your safe has a unique product part number on the inside of the batty door and a 4-digit ID number engraved on the keys. You will need these numbers to register your new unit.

1. Locate your product part number. It is printed on the first page of your user manual and on the back of the battery cover.

2. Find your 4-digit number engraved on the keys.

3. A copy of your receipt or order number.

4. You are ready to register your safe.

Toggle Open Door Alarm: Your safe features an open door alarm that will sound when the safe door is left open for more than 6 minutes. By default, this alarm is ON. To toggle OFF press and hold keys ‘3’ and ‘5’ then “PROGRAM” button together.

Toggle Alert of Manual Unlock: If the Alert of Unlock is on, and someone opens the safe with either the key or by picking the lock, the keypad will start flashing. To toggle Alert Unlock press and hold keys ‘3’ and ‘6’ then “PROGRAM” button together for 3 seconds. The keypad will flash GREEN indicating enabled or RED indicating disabled. If ON and activated it can only be cleared by entering master code. Default is OFF.

Tamper Detection: To check for tampering press and hold keys ‘2’ and ‘4’ together for 3 seconds. The screen will indicate TAMPERING or CLEAR. You can reset the tamper detection by opening the safe through one of the authorized entry points. Tampering includes incorrect keypad entries as well as incorrect fingerprint scans.

Toggle Sound: To toggle the sound ON/OFF press and hold keys ‘1’ and ‘3’ together for 3 seconds. The

screen will indicate the sound is ON and beep or the screen will indicate OFF and not beep.

Toggle Travel Mode: Save battery life by disabling the proximity sensor, fingerprint sensor, keypad, Smart Key, Wi-Fi®, and status bar. To toggle travel mode ON/OFF press and hold keys ‘1’ and ‘8’ together for 3 seconds. The screen will indicate ENABLED or DISABLED.

View Battery Status: To check the battery level press and hold keys ‘6’ and ‘8’ together for 3 seconds.

The screen will indicate the battery level.

Delete Fingerprints: To delete fingerprints press and hold the ‘3’ key then “PROGRAM” button together

until the safe beeps and the screen prompts you to enter your master code. Enter your master code on the keypad. If the code is correct, the safe will beep and the screen will indicate deletion of all the fingerprints. This will remove ALL the fingerprints. To delete individual fingerprints you can use the Vaultek® Wi-Fi®

smartphone app or Web Dashboard.

Toggle Interior LED Lights: To toggle the interior light ON/OFF press and hold keys ‘5’ and ‘7’ together for 3

seconds. With the light toggled to ON you can press the LIGHT button inside the safe to illuminate the LED lights and you can also adjust the brightness from the Vaultek® Wi-Fi® smartphone app or Web Dashboard. If the light is toggled OFF the light will be disabled.

Adjust LCD Brightness: The LCD screen has four brightness levels: 25%, 50%, 75%, and 100%. To toggle the LCD brightness press and hold ‘5’ and ‘8’ together for 3 seconds. The screen will indicate the brightness level.

View Temperature/Humidity: Your Vaultek® safe has built in sensors to monitor the internal temperature as well as the relative humidity inside your safe. Press keys ‘2’ and ‘5’ together to display the information on your safe’s LCD screen. You can also monitor the safe’s temperature and humidity from the Vaultek® Wi-Fi® smartphone app and online Web Dashboard. You even have the option to set thresholds and be alerted of

any significant changes.

Toggle Fahrenheit/Celsius: By default, the safe will measure temperature in Fahrenheit. By pressing keys ‘2’ and ‘6’ together you can toggle the display to show temperature in either Fahrenheit or Celsius.

Toggle Smart Key Entry Modes: Smart Key has THREE modes: OFF, Progressive Entry Mode, and On Demand Entry Mode. OFF disables Smart Key access. Progressive Entry Mode requires that you wake the safe first (keypad illuminates red) and then activate the Smart Key. On Demand Entry Mode grants immediate access when activating the Smart Key. Pressing and holding the ‘6’ key then “PROGRAM” button together for 3 seconds

will allow you to toggle through each mode from the keypad. You may also alternate modes in the Vaultek® Wi-Fi® app or Web Dashboard.

Toggle DMT Sensitivity (Impact Detection): Your Vaultek® safe has a built-in accelerometer and corresponding alarm that alerts of any attacking to your safe including bumps and impacts, DMT (Impact Detection). DMT is enabled by default and its sensitivity has three settings; Low, Medium, and High. You can toggle through these settings by pressing and holding the ‘7’ key then “PROGRAM” button together for 3 seconds. The screen will indicate LOW, MEDIUM, and HIGH as well as DISABLED.

Toggle Dual Entry Mode: To toggle the Dual Entry ON/OFF press and hold the ‘8’ key then “PROGRAM”

button together for 3 seconds. The screen will indicate ENABLED or DISABLED. If the Dual Entry is toggled ON, you will be required to enter your master code and fingerprint (and vice versa) to open the safe. This mode requires that at least one fingerprint be programmed into the safe.

Factory Reset: Press keys ‘2’ and ‘7’ and PROGRAM together for 3 seconds. IMPORTANT The Factory Reset erases ALL programmed information and restores the safe to its default settings. This includes any network configurations and enrolled fingerprints. The master code is reset to 1-2-3-4 and the safe will restart. The safe must be configured again to work with the Vaultek® Wi-Fi® smartphone app and the Web Dashboard.

Floor Mounting (Figure K)

With two people, carefully tilt the safe on its side and open the safe door. Lift the interior pad to locate the foot hardware and remove all (4) feet to use the pre-drilled holes for mounting.

Wall Mounting (Figure L)

Remove the (3) pre-drilled hole covers using a phillips screwdriver or drill.


TIP: You can use your own hardware specific to your application.

1) Locate all pre-drilled holes inside safe for mounting.

2) Position safe in place and mark holes for drilling.

3) Remove safe and drill pilot holes for hardware.

4) Reposition safe and install/tighten hardware.
